Hewlett-Packard 3435A
DVM


Manufacturer: Hewlett-Packard
Model: 3435A
Year: 1976
Schematic: -

Functions: DCV, ACV, DCA, ACA, Ohms, Auto-range
Display: LED
Digits: 3.5
Logic: LSI

Nice bench-top digital multimeter. Auto-ranging.

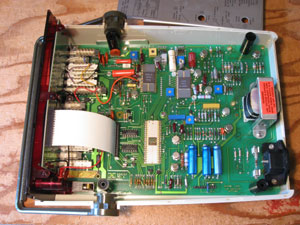

View of internals. The shield at top of picture sits over the analog circuitry.



- Unit Log -

Serial Number: 1606A-02345
Year of Manufacture: 1976 (IC date stamp of 7626).
Date of Receipt: ~2005
State upon Receipt: Functional. Good condition, except two holes drilled in top of case near rear and two holes in case at rear.
