Digimatic P8 (Model No. 41031) Calculator

Digimatic P8 (Model No. 41031) Calculator

Manufacturer: Digimatic

Model: P8 (Model No. 41031)

Year: 1973

Form: Pocket

Functions: Basic four, percent

Number of Digits: 8

Display Type: LED

Logic Technology: LSI

Diodes: 16

Transistors: 6

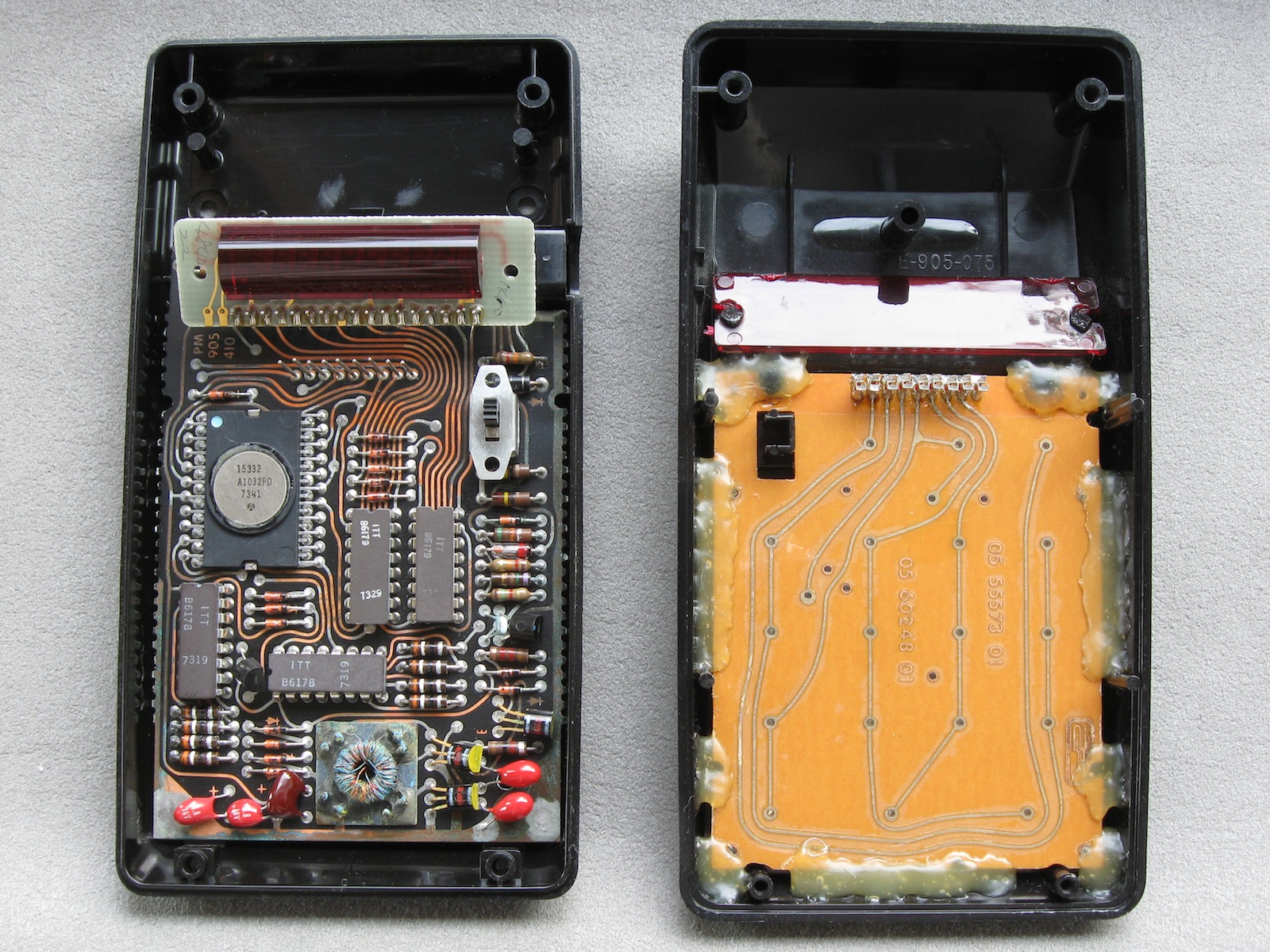

IC Complement: Rockwell 15332 A1032PD
ITT B6178 (2)
ITT B6179 (2)
(5 total)

Batteries: (?) NiCd

Power Connector: (?) VAC, 2-pin special
(alternate/no batteries: 4.5::6 VDC, + left)
Tech. Data Level: 2

Tech. Data Source: RE

Tech. Data Pages: 1

Tech. Data: Schematic (pdf)

Another model actually OEM'd by Bowmar, in this instance for Sears. Digimatic was a name brand of Sears.

- Unit Log -

Serial Number:	113467
Year of Manufacture:	1973 (15332 IC stamped with 7341, others ICs with 7319, 7329.)
Date of Receipt:	21 May 2001
Source:	de Champlain.
State upon Receipt:	Fair physical condition, scratch marks on aluminum faceplate. Some corrosion from batteries. Functional. Missing power adapter with special connector. Rechargeable battery pack had been removed.
Current State:	Fully functional (2020 Feb) (27 May 2001).

Date:	27 May 2001
Procedure:	Cleaned. LED module lens removed during drying.

Digimatic P8 (Model No. 41031)
