Calculator		 Sanyo ICC-83 (SACOM MINI) Calculator

Manufacturer: Sanyo
Model: ICC-83 (SACOM MINI)
Year: 1973
Form: Desktop (battery operated portable)
Functions: Basic four, constant
Number of Digits: 8
Display Type: GDM
Display:Sanyo SMI-81P
Logic Technology: LSI
Diodes: 24 + 1 bridge
Transistors: 38
IC Complement:Texas Instruments TMS 0101
Batteries: 4 C
Power Connector:6 VDC, + right, - left, 3-pin triangle special
(replacement: 6 VDC, + tip, DC)
Tech. Data Level: 2
Tech. Data Source: RE
Tech. Data Pages: 2
Tech. Data:Schematic (pdf)

- Unit Log -

Serial Number: 5021133 S
Year of Manufacture: 1973 (TMS0101 IC stamped with 7303.)
Date of Receipt: 13 May 2001
Source: Hastings V. V.
State upon Receipt: Good physical condition. Fully functional. Missing power adapter with special connector.
Current State: Fully functional (24 Feb 2008).

Date: 15 Mar 2001
Procedure: Cleaned.

Date: 17 Mar 2001
Procedure: Original oddball power connector replaced with 2.5mm DC standard.

Date: 24 Feb 2008
Symptoms: Keys 1 and + do not function.

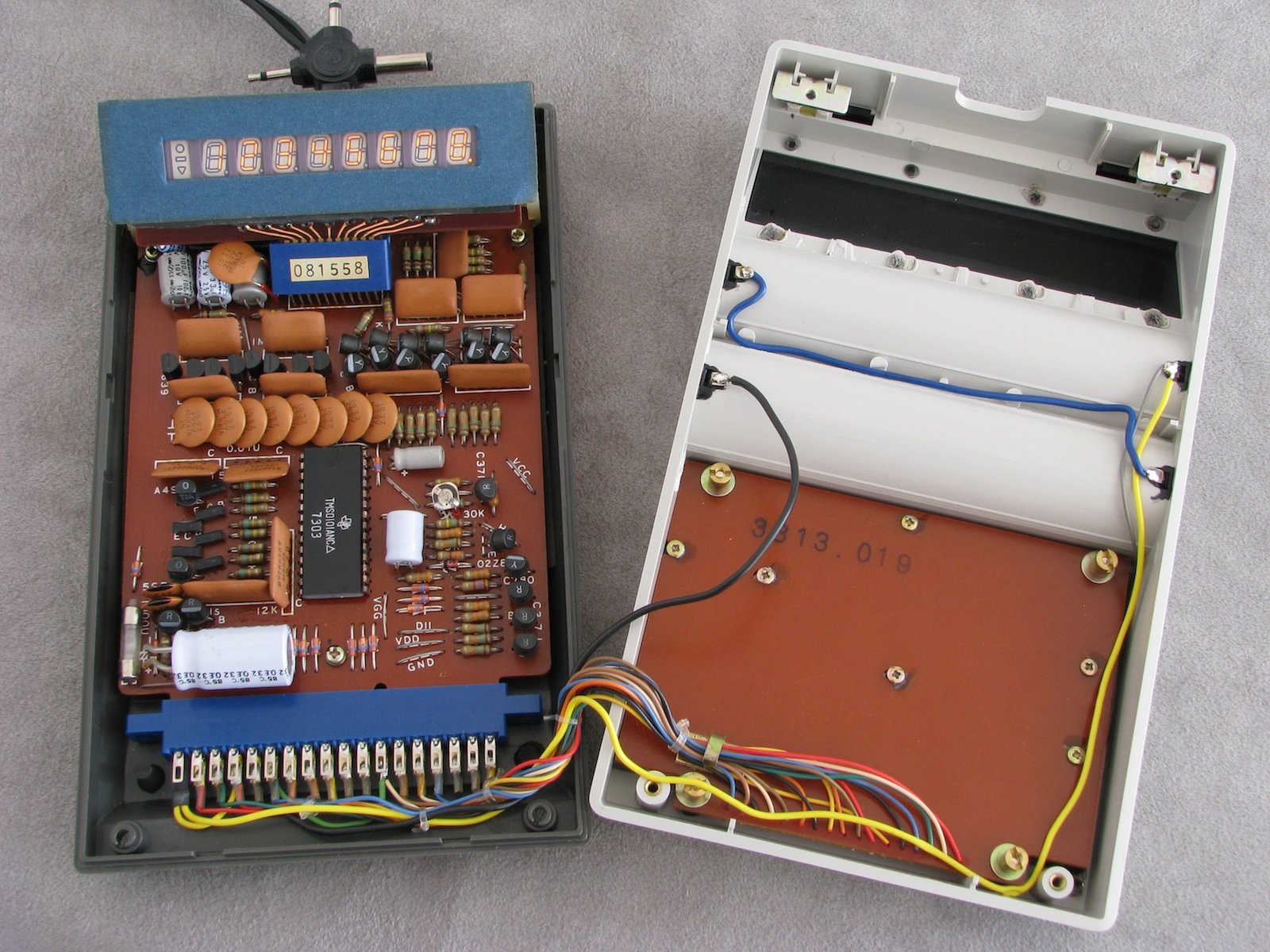

Solution: + key works after some repeated pressing, no such luck with the 1. Keyboard is a membrane type with double action plunger to limit the force on the membrane contact. Disassembly gives access to the membrane but not the actual contact area. 1 pad worked some with finger force. Functional.
